TUFF-EDGE® II Polyester Web Slings: Type U Unilink Hardware, 1 Ply, 4" W
2X Stronger After Abrasion; 2X Better Edge Cut Resistance
You can expect longer sling life and lower overall costs when you switch to Tuff-Edge II Slings. Resistance to the two properties that can rapidly degrade webbing, abrasion and edge cutting, is greatly improved with the use of our Tuff-Edge II webbing. Using Federal Test Method 191A, Tuff-Edge II webbing was tested against standard yellow polyester webbing. After being subjected to the same number of hex bar abrasion cycles, the Tuff-Edge II webbing, with its’ special silver treatment, achieved average break strengths that were twice that of the standard yellow webbing! In a test developed specifically to measure edge cutting properties, the cut depth on the Tuff-Edge II webbing with special polymer edge yarns cut less than half the depth of the standard yellow polyester without the special edge yarns.
Although you should always pad and protect synthetic slings from load edges, normal wear and tear should be greatly reduced when using Tuff-Edge II, giving you greater sling life and reduced sling costs. U. S. Patent No. 4856387.
- Special polymer coated edge yarns improve edge cutting and abrasion to extend sling life
- Silver colored web treatment fights abrasion for additional sling life
- Tuff-Tag provides required OSHA information for the life of the sling, not just the life of the tag
- Red Core yarn warning system aids in the inspection process
- Tuff-Tag provides serial numbered identification for traceability
- Proven sling web construction
- Easy identification - silver body, blue edges, blue center stripe

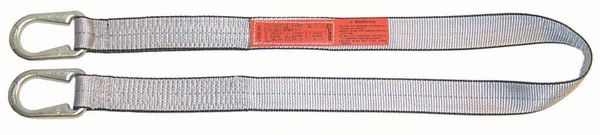

Type U Unilink hardware slings (UU)Has the preferred and economical Unilink fitting on each end for use in vertical, choker, or basket hatch. Unilinks allow choking from either end to save time and vary wear points.
One Ply x 4"W Web. Rated Capacity: 6,400 lbs vertical x 5,000 lbs choker, x 12,800 lbs v. basket.
Available in lengths from 4' to 20'.
*Do not exceed rated capacities. Sling capacity decreases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
Available in One Ply and Two Ply widths from 2 to 4". Call 563-872-5065 M-FR 8-4 to order direct.
Ships directly from LiftAll. 3-4 day lead time.
