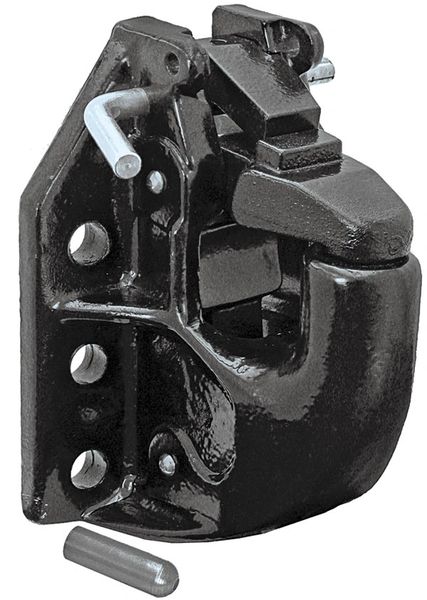

45-Ton Air Compensated Pintle Hook (6 Hole)
- Double-safe locking system with a lock/clasp/impact arm interacting design that combine to prevent release of the eye when air pressure is applied
- Must be used with a brake chamber
- The air brake chamber is constructed to interact with the closed clasp to prevent uncoupling when air is applied
- To be used with a lunette eye having an internal diameter between 2-3/8” and 2-5/8”, and a material cross section between 1-5/8” and 1-3/4” in diameter
- Includes Pintle Hook, Brake Chamber, and Bracket
- MVL: 18,000 lbs; MGTW: 90,000 lbs
- Replacement parts available, brake chamber #4C0129; brake chamber bracket #4C0130 - Call 855-219-6387 to order
Part # 4C0128 P45AC6K
May ship separately.
View additional Pintle Hooks in our catalog starting on page 88.
Call 855-219-6387 to order direct.
