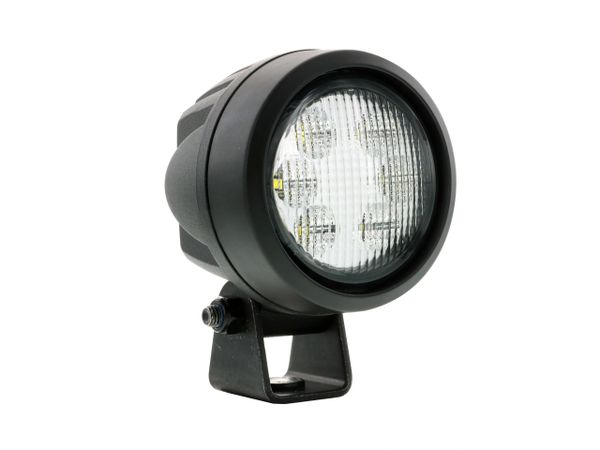

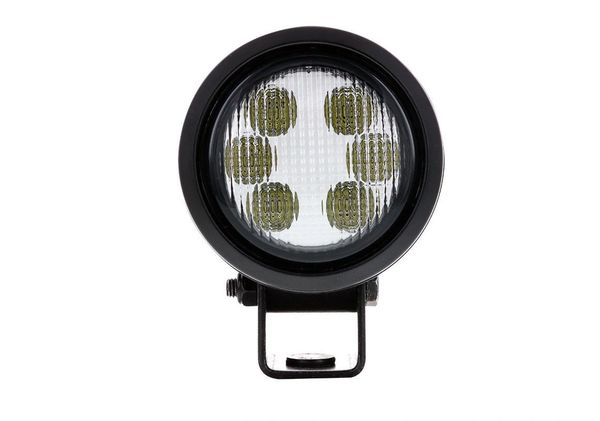

RL 1500 LED Series Compact Work Lights
The ABL RL 1500 LED series work lights are designed to exceed everyday demands in all applications. Through stringent engineering and testing practices, we ensure the highest efficiency and durability in even the harshest operating conditions.
OEM Replacement light for current/new CAT machines.
- Pedestal mounting, DT 2 pin connection
- Bulb: 1500 Lumen
- Lifetime: 30,000 hours
- Color temperature: 6000K

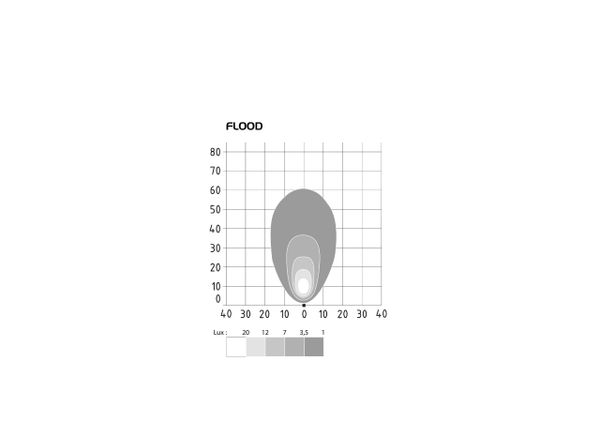

- Light: pattern Flood, S[pt
- Consumption: 20W
- Voltage: 12/24V
- Amperage: 0,85 Amp @ 24V
- Weight: 0,55 Kg
- Vibration resistance: 15 Grms from 24 to 2000Hz
- Shock resistance: 60 G
- EMC: ISO 13766 - ISO 14982 - ISO 1 895-CISPR25 class 5
- Load Dump: 36V continuous / ISO 737-2 Pulsa 5a
- Polarity: Protected against reverse voltage
- Electronic Thermal Management: full output @ +35°C ambient; 25% dimmed @ +50°C ambient
- Operating Temp: -40°C to +85°C
- Salt Spray: ISO 9227
- Lens: Polycarbonate
Ships in 7-10 business days.
